Roll Centre Shim Plate Set (0.5/1mm) for Mugen MTC2
Introducing our brand new Roll Centre Shim Plates for the Mugen MTC2!

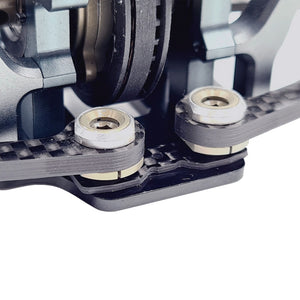

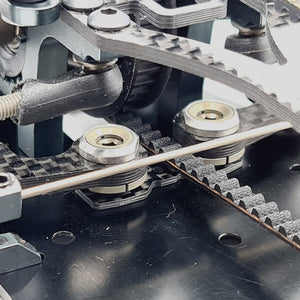

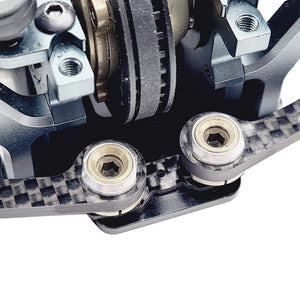

Changing the roll centre on the Mugen MTC2 can be a pain, having to totally remove each screw and place shims under whilst lining it all up and tightening again. Well now you can say goodbye to that! Our Roll Centre Shim Plates slide in and out without the removal of your screw. This keeps everything attached, and you can adjust the roll centre in seconds!
You can use them for all sections of the car, FF, FR, RF and RR. The Front and Rear are different and have different spacing, which can be identified by the dimples machined into the spacers, being 1 for front and 2 for rear.
The central hole allows easy removal by inserting a 1.5mm driver and sliding them out from the top.

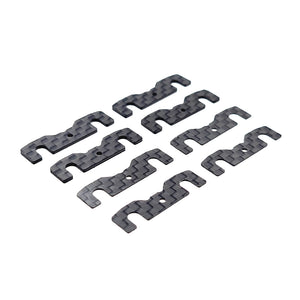

The set includes 0.5mm and 1mm plates for front and rear, meaning you can adjust anywhere from 0.5 to 1.5mm depending on how many, and which plates you use.
Note: These can only be used on the Aluminium Chassis, and our SlimFlex 2.2mm Carbon Chassis. Due to the recesses on the Standard Kit Carbon Chassis, we do not recommend using these if you are using the standard carbon chassis.
Slide in and out installation and removal for super fast and stress free roll centre changes at the track
Allows roll centre changes from 0.5mm to 1.5mm in 0.5mm increments
Super lightweight and durable construction from 0.5mm and 1mm 3K Gloss Carbon Fibre
