IN8-10319

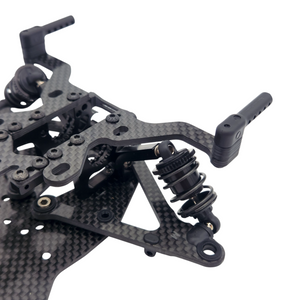

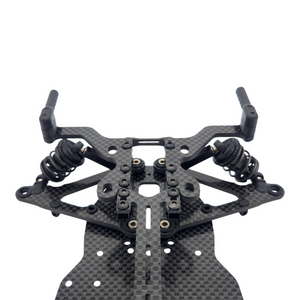

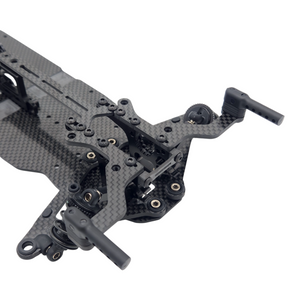

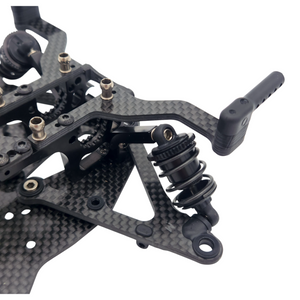

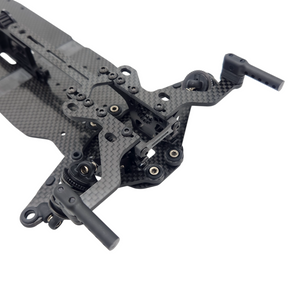

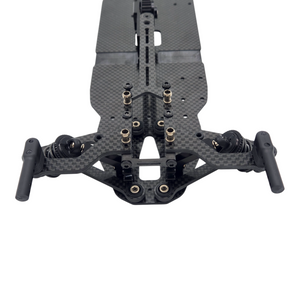

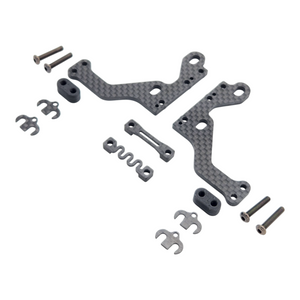

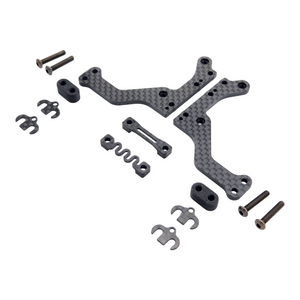

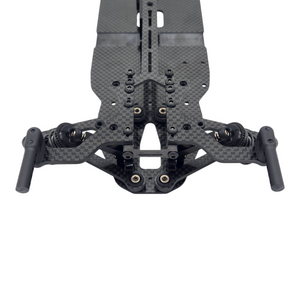

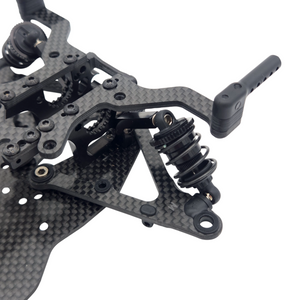

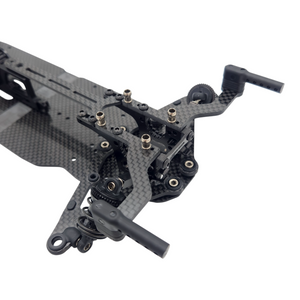

INOV8 Carbon Horizontal Rear Body Mount Set for XRAY X4'26 (Various Types)

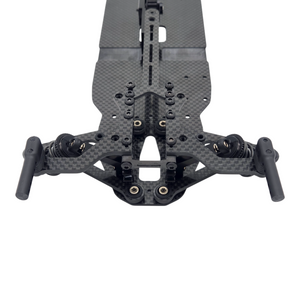

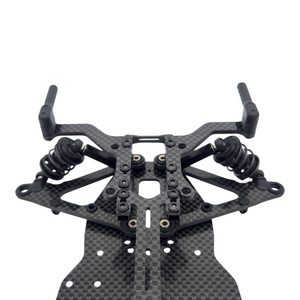

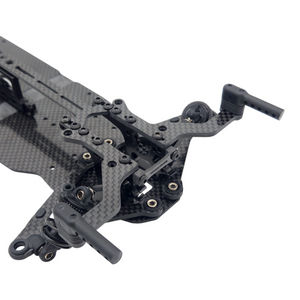

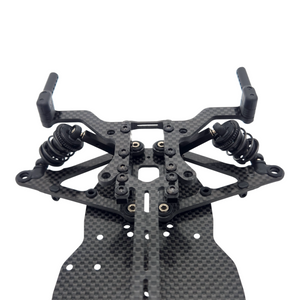

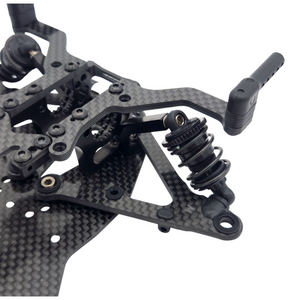

Introducing our brand new inov8tive rear body mount/upper bulkhead for the XRAY X4'26!

These body mounts bring several benefits to your '26 chassis by lowering CG, allowing more and finer height adjustability, and allowing rear bulkhead flex adjustment.

  • Lower Centre of Gravity
    • The standard body mount is 4mm thick and quite heavy. The design also means that on average it sits higher than our 3mm stiff weave carbon body mounts. Our body mounts therefore lower the centre of gravity and also the weight over the back of the car.
  • Finer Height Adjustment

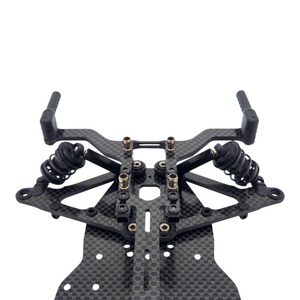

    • When using the included "vertical body posts" you can access an infinity number of height adjustment possibilities by using our carbon quick adjust spacers, or even normal shims!
  • Rear Bulkhead Flex Adjustment
    • Being able to adjust the rear bulkhead flex is a great tuning tool for tuning rotation both on and off power. By using our soft and hard flex braces, or no brace at all, you can adjust the balance of the car in corners.
      • No brace = Most Rotation (for tiny tight tracks with lots of hairpins)
      • Soft brace = Balance of rotation and stability (for medium size tight tracks)
      • Hard brace = Most stable option (for more flowing and hard acceleration tracks)

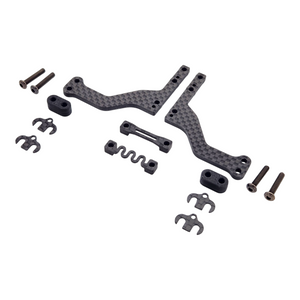

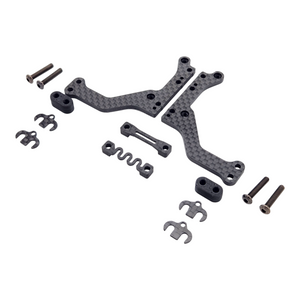

We also offer 4 different versions which allow for a cleaner and more durable install depending on what your desired link/arm preference is.

  • Type 1:Same Geometry as Original Upper Bulkheads for use with Kit Upper Arms
  • Type 2: Same Geometry as Original, For turnbuckle style links only
    • Using these allows for more simplified mounting of the turnbuckle links.
    • These feature built in M3 Inserts which can be screwed into with the optional XRAY #362651 4.9mm Male Ball studs, or by screwing an M3x8-M3x10mm Grub Screw into the kit female ball studs to create a male ball stud
  • Type 3: 1.5mm Longer Length Link, For turnbuckle style links only
    • Using these lengthens the link slightly, so it's not as long as the hillbilly style but not as short as the kit setting, a great middle ground!
    • These feature built in M3 Inserts which can be screwed into with the optional XRAY #362651 4.9mm Male Ball studs, or by screwing an M3x8-M3x10mm Grub Screw into the kit female ball studs to create a male ball stud
  • Type 4:For Hillbilly (Long Bulkhead Mounted Link, For turnbuckle style links only
    • Using these reduces weight and lowers the CG!

Choose one of these great options for your X4'26!
