INOV8 X-Lite Horizontal Rear Body Mount for 1/10th EP Onroad

INOV8 X-Lite Horizontal Rear Body Mount for 1/10th EP Onroad

The original product produced by RC MAKER has taken the world by storm, with thousands of racers opting to mount their bodies the better way! After months of feedback from drivers around the world as well as our team drivers consisting of the likes of Michal Orlowski, Marc Rheinard, Atsushi Hara, Yannic Prumper, Antoine Brunet, Akio Sobue and more, we set out to further improve on what was already a great product.

Why use our new X-Lite Horizontal Rear Body Mount over regular holes directly in the body?

• Durability: The holes in lexan are always close to the skirt, meaning it's quite easy to tear them out or damage the holes in even the smallest of accidents.
• Stiffness: This area of the body is very thin and can flex under load, not as efficiently distributing the downforce.
• Adjustability:The height adjustability of the body relies solely on the attachment to the chassis, which may not be in fine increments or easy to adjust.

Our new Horizontal Rear Body Mountsimprove on ALL of these areas!

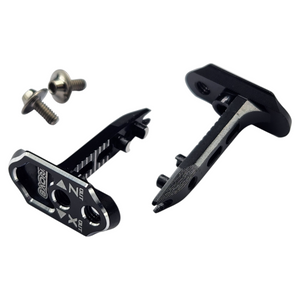

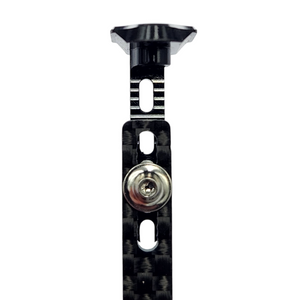

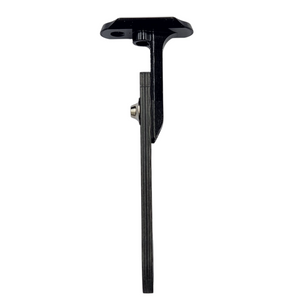

• Durability is significantly increased, due to now not having any holes in the rear of the body at all. The connection is made via the 2mm thick carbon extension and 7075 Aluminium mount which connects directly to the wing strut.
• Stiffness is drastically improved now via the body being mounted to the car via a solid, extremely stiff combination of carbon fibre and 7075 Aluminium. This provides maximum downforce transfer to the rear of the car, ensuring the aerodynamics of the body/wing is transferred to the car in its full potential. Use our X-Lite Touring Car Wing Buttons for maximum rigidity of your body mounting system, and they are only 0.35g each!

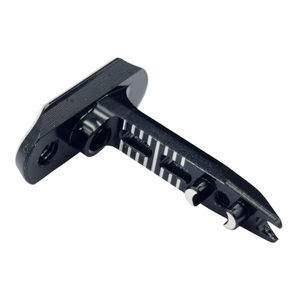

• Adjustability is paramount, and our HRBM are able to be adjusted in 1mm increments with a total 7mm of travel. Simply loosen the screws, slide the carbon extension up or down into the other notches, tighten firmly. Machined markings provide a clear indicator of the height of the body so that it can be matched left and right.
• Adaptability to different bodies is a breeze. Even though different brands feature different wing offsets, we have built an offset into our HRMB which means that it can be flipped left and right to compensate for the different strut distance on the bodies.  This means the same mounts and extensions can be used for all bodies, and only the extensions must change depending on the car.

All of this provides you with an absolutely perfect lightweight solution to transfer the maximum amount of downforce to your car, whilst keeping the body more rigidly secured to the rear of your car than ever possible before. The assembly is very strong, ensuring you are able to stay on the track in crashes, and not having to replace body-shells just because the holes have been damaged or torn out. The adjustability offered by these mounts is a necessity to be able to tune the rake and height of your body.

These body mounts can be transferred body to body, and securely attaches your wing, as well as bracing the wing strut to protect against deforming in high speed and in crashes.

The best part is, it makes body mounting an absolute breeze! No more rear holes at all, simply get your front holes correct and screw the mounts on! We recommend using body pins either side of the carbon to ensure maximum rigidity.

Compatible Bodies

This system will fit the Xtreme Twister & Twister Speciale, all Zoo Racing Bodies, LensBodies as well as the Protoform P63.

Compatible Cars

Different extensions are required for different cars, check below to see which type of extension is required for your car!

TYPE 1: A800R/RR, MTC2R, SP1, TC10/3, TRF421

TYPE 2:  MS1.0, ONE.05

TYPE 3: X4'23/24, A10

TYPE 4: Mi9, XQ11 & XQ3S, RX10SR3.0R

TYPE 5: IF14-2, X20'24

TYPE 6: Mugen MTC3

You must buy the extensions separately to the mounts!

Features:

• Tuned for maximum downforce, durability, stiffness, appearance and adjustability
• Ultra-Lightweight design coming in at only 3.7 grams including everything, per pair!
• Fits all Zoo Racing and Xtreme, LensBodies, Bittydesign Hyper HR and Blitz Roadster Bodies
• Only one carbon extension required per car, with mounts that have the body offsets integrated.
• Grade 5 Titanium Screws included for maximum strength and minimum weight
• Integrates into out existing anti-tuck stiffeners
• Extension versions to suit all popular touring cars
• No holes required in the body for super easy body mounting
• 7075 Black Anodized Aluminium mounts for maximum strength and minimum weight
• Includes mounting hardware, but NOT carbon extensions required for use

Installation Instructions:

ZOO:

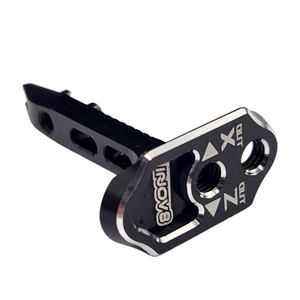

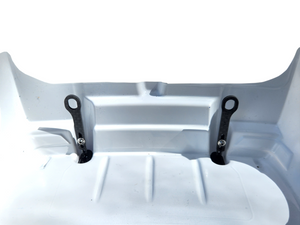

• Mount the Aluminium mounts in the wing struts with the Z facing outwards on each side of the body-shell.

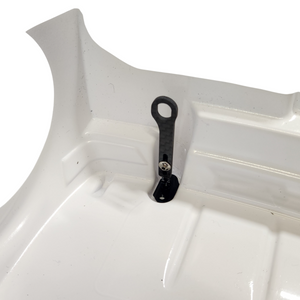

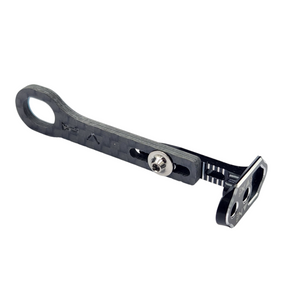

• Attach the carbon extension onto the mount with the offset facing outwards. Fasten with the supplied Gr.5 Titanium Screw in the middle position

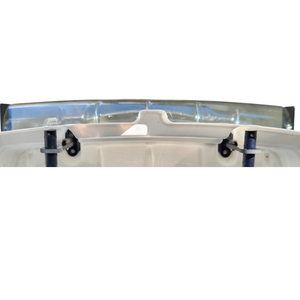

• Check the body/mounts slide onto the rear posts. If they are tight, loosen the carbon extension slightly and move it in the direction required and re-tighten. The body posts could also be bent, so just bend them in the direction required to ensure the body can move freely up and down on the rear posts.
• Get the rear of your body to the correct height by loosening the Gr.5 screw and shifting the carbon extension up or down and re-tightening the screw.

XTREME:

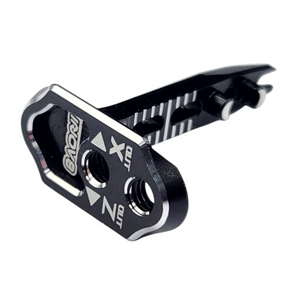

• Mount the Aluminium mounts in the wing struts with the X facing outwards on each side of the body-shell.
• Attach the carbon extension onto the mount with the offset facing outwards. Fasten with the supplied Gr.5 Titanium Screw in the middle position
• Check the body/mounts slide onto the rear posts. If they are tight, loosen the carbon extension slightly and move it in the direction required and re-tighten. The body posts could also be bent, so just bend them in the direction required to ensure the body can move freely up and down on the rear posts.
• Get the rear of your body to the correct height by loosening the Gr.5 screw and shifting the carbon extension up or down and re-tightening the screw.
